PCB assembly cost is not one fixed price. A PCBA quote usually includes the bare PCB, components, SMT or through-hole assembly, setup, inspection, testing, optional coating, final product assembly, packaging, and shipping.
Small orders usually cost more per board because the same setup work is shared by fewer boards. Complete files also help the assembly partner quote faster and ask fewer follow-up questions.
If you need a full process overview, read the PCB assembly and PCBA manufacturing process. This article focuses on what changes the quote and what buyers should send before asking for pricing.
What Is Included in PCB Assembly Cost?
A PCBA quote has two types of cost. Some costs are charged for each board, such as the bare PCB, components, assembly, inspection, and packaging. Other costs happen once per order, such as stencil, first article review, fixture preparation, and engineering review. Those one-time costs raise the per-board price on small orders.
| Cost item | What it covers | Why it changes |
|---|---|---|
| PCB fabrication | Bare circuit boards | Layer count, size, material, copper weight, finish, tolerance |
| Component sourcing | BOM purchasing | Part availability, brand, MOQ, approved alternates, lifecycle risk |
| SMT assembly | Surface-mount placement and reflow | Component count, fine pitch, BGA/QFN, double-sided SMT |
| Through-hole assembly | DIP parts, connectors, larger components | Manual insertion, wave soldering, selective soldering |
| Setup and tooling | Stencil, SMT machines programming set up, first article inspection, fixture preparation | One-time work, higher effect on small orders |
| Inspection and testing | AOI, X-ray, ICT, FCT | Test coverage, fixture needs |
| Extra services | Coating, Parylene, enclosure assembly, labeling, packaging | Product-level requirements |
| Shipping | Delivery and export-related cost | Shipment size, destination, speed |
SMT assembly cost changes with component count, package type, board side, and order quantity.
For many projects, components take the largest share of the quote. Setup and tooling may be smaller in total value, but they can raise the per-board price on low-volume orders.
PCB Assembly Cost Breakdown: Where the Quote Comes From
A clear PCB assembly cost breakdown separates one-time items from per-board items.
| Cost type | Examples | Cost behavior |
|---|---|---|
| One-time items | Stencil, first article review, fixture preparation, engineering review | Higher effect on prototypes and low-volume orders |
| Per-board items | Bare PCB, component set, assembly time, inspection, packaging | Changes with order quantity |
| Extra inspection items | X-ray, ICT, FCT, coating inspection, rework allowance | Changes with product complexity and reliability needs |
| Delivery items | Shipping, packaging, delivery speed | Changes with destination, box size, weight, and schedule |
Small quantities cost more per board because fewer boards share the same setup work. A stencil, test fixture, or first article review is often needed whether the order is 20 boards or 2,000 boards.
Large quantities lower the per-board price when the BOM is stable and parts are available. If the BOM changes during quoting, the supplier has to recheck component price, stock, alternatives, and lead time.
Why PCB Assembly Quotes Vary Between Suppliers
Two PCB assembly quotes often look different because they include different work.
One supplier may include PCB fabrication, components, SMT assembly, through-hole assembly, inspection, testing, coating, packaging, and shipping. Another supplier may quote only assembly labor. The second quote may look cheaper at first, but the buyer still needs to pay separately for the PCB, parts, testing, packaging, and delivery.
Quote differences often come from:
- Whether the bare PCB is included.
- Whether the quote uses exact MPNs or estimated component prices.
- Whether approved alternates are listed.
- Whether AOI, X-ray, ICT, or FCT is included.
- Whether test fixtures are included or quoted later.
- Whether coating, enclosure assembly, labeling, and packaging are included.
- Whether lead time is based on current component stock.
When comparing suppliers, do not compare only the final number. Check what each price row includes. If you are still evaluating suppliers, use this guide on how to choose a PCB assembly supplier.
Design Factors That Increase PCB Assembly Cost
PCB layout, component packages, component count, and assembly method affect assembly time, inspection needs, rework difficulty, and test coverage. Buyers do not need to manage factory setup details, but they should know which design factors change the quote.
Component Count and Unique Part Count
More components increase placement time and inspection time. More unique part numbers increase BOM review, sourcing checks, and setup work.
A board with 300 placements from 40 unique part numbers is easier to quote and control than a board with 300 placements from 120 unique part numbers. The second board needs more sourcing review and has more chances for wrong, obsolete, or unavailable parts.
Fine-Pitch, BGA, QFN, and Small Packages
Fine-pitch ICs, BGA, QFN, and very small passive parts need tighter process control and more inspection. BGA solder joints are not visible from the outside, so X-ray inspection is often needed.
If a product uses BGA parts, surface finish and PCB pad quality can affect assembly yield. For that specific topic, see this guide to surface finish for BGA assembly.
Double-Sided SMT and Mixed Assembly
Double-sided SMT needs more process steps than single-sided SMT. Mixed SMT and through-hole assembly adds manual insertion, wave soldering, selective soldering, or extra inspection steps.
Through-hole parts add manual work and extra soldering steps to a PCBA quote.
BOM and Component Sourcing Costs
Component cost is often the largest part of a PCBA quote. The final price depends not only on the BOM, but also on the supplier's purchasing team, approved supplier network, order volume, and experience with similar products.
A direct assembly factory with an in-house purchasing team may have better control over component price and lead time than a company that outsources all purchasing. The difference is larger when the BOM uses common brands or part families that the factory already buys in high volume.
For example, if a factory regularly purchases large quantities of TI, Wurth Elektronik, Murata, Yageo, or similar component brands for long-term customers, it may have better pricing and faster access for projects that use the same brands. The same logic applies to many resistors, capacitors, connectors, and power components.
China also has a dense electronics manufacturing supply chain. Many global brands and China-based component brands are available through mature local distributors, agents, and inventory channels. For common passive components and standard electromechanical parts, this supply base can help reduce BOM cost and shorten sourcing time.
Buyers should still send a clear BOM, but the BOM is only one part of the cost picture. Before comparing PCB assembly quotes, ask:
- Does the supplier have an in-house component sourcing team?
- Is the supplier a direct assembly factory or a trading company?
- Does the factory already buy the same brands or part families in volume?
- Are exact MPNs, approved alternates, and no-substitute parts clearly marked?
If some parts are hard to buy, mark which parts can be replaced and which parts must stay exactly the same. Confirm these alternates before final quotation, so the supplier can quote realistic component prices and delivery time.
Testing and Final Product Assembly Costs
Functional Testing and final product requirements change PCB assembly cost. List them before quote approval, not after production starts. At least you need to ask what's the labour cost for each hour the PCB assembly factory charge.
Firmware Loading
Firmware loading cost depends on the chip brand, loading method, order quantity, and whether serial number records are needed. For quoting, state whether firmware loading is required and provide the firmware file, version, and basic pass/fail rule.
Coating, Parylene, Enclosure Assembly, and Packaging
Conformal coating and Parylene add material cost, process time, masking, curing or coating control, and inspection.
Parylene coating adds process time and inspection steps when products need environmental protection.

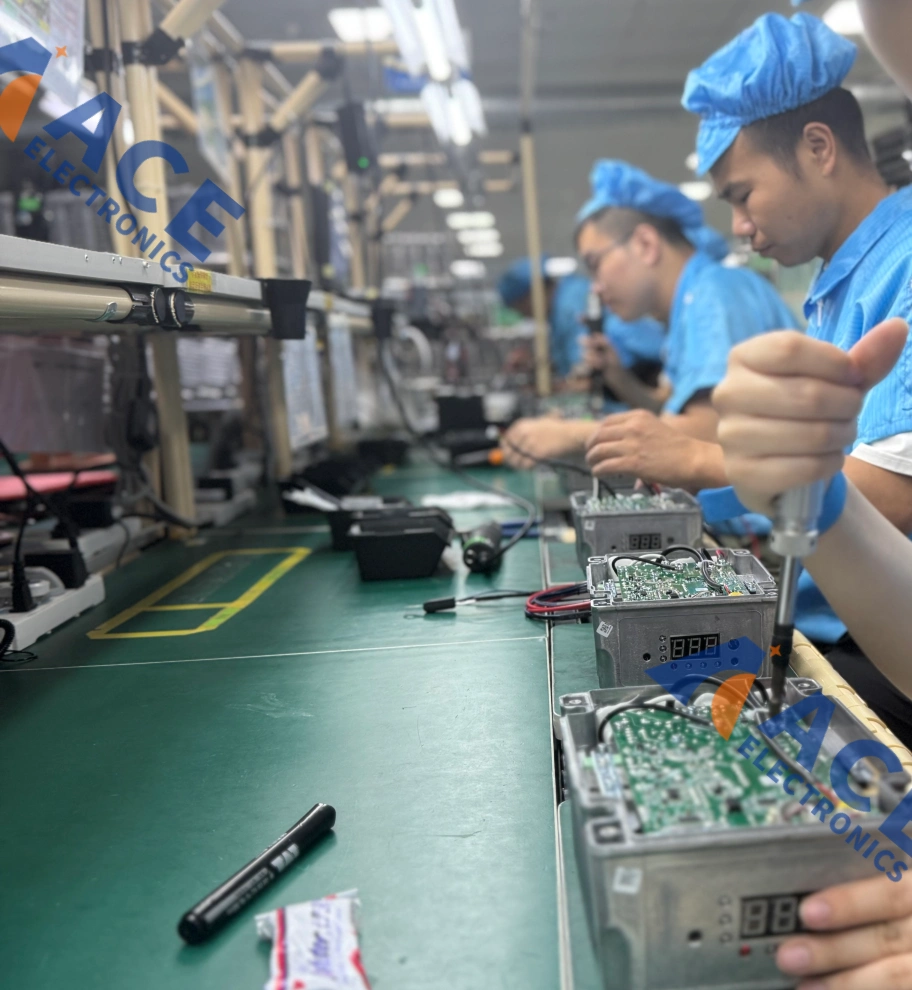

Some projects also need cable connection, enclosure assembly, labeling, accessories, and retail or industrial packaging. These requirements should be included in the quote before buyers compare prices.
Enclosure assembly, labeling, accessories, and packaging should be listed clearly in the quote.
Related services include conformal coating and final product assembly.
Inspection
Routine inspection is usually included in the PCB assembly cost. This can include first article inspection, AOI for SMT placement and soldering issues, and X-ray when the board has BGA, QFN, or other hidden solder joints.
If one supplier's assembly price is much lower than the others, check what inspection steps are included. Some factories reduce time and cost on small orders by skipping AOI, X-ray, or first article inspection. This lowers the quote, but it also raises the chance of defects reaching the customer.
Ask simple questions before approving the quote:
- Is AOI included for SMT assembly?
- Is X-ray used for BGA, QFN, or hidden solder joints?
- Is first article inspection done before the full order continues?
- Are inspection records available if the project needs them?
Functional testing is different from routine inspection. If the product needs power-on testing, fixture testing, firmware loading, or a pass/fail report, state that separately in the quote request. Related support is available under firmware loading and functional testing.
Turnkey vs Consigned: Which Cost Is Easier to Control?
Turnkey PCB assembly cost and consigned assembly cost are not directly comparable unless both quotes include the same work.
| Model | What the customer provides | Cost impact |
|---|---|---|
| Consigned assembly | Parts, files, special instructions | Lower sourcing cost in the quote, but the buyer carries purchasing and shortage risk |
| Partial turnkey | Some parts from the customer, some from the supplier | Flexible, but responsibility must be clear |
| Turnkey assembly | Files, BOM, requirements | Larger quoted work, but fewer handoffs and clearer responsibility |
Consigned assembly works well when the buyer already controls parts. It creates risk when parts arrive late, arrive short, or do not match the BOM.
Turnkey assembly gives the supplier responsibility for PCB fabrication, component sourcing, assembly, and testing. The quote may look higher because it includes more work, but the buyer manages fewer handoffs. For that model, see PCBA contract manufacturing.
How to Reduce PCB Assembly Cost Without Raising Risk
Cost control starts before quoting. Most avoidable cost comes from unclear files, unstable BOMs, rushed decisions, and missing test requirements.
Use this checklist before requesting a PCB assembly quote:
- Send complete Gerber, drill, BOM, pick-and-place, and assembly drawing files.
- Approve alternate components before quoting when possible.
- Avoid rare packages unless the design needs them.
- Reduce unnecessary through-hole parts.
- Confirm test requirements before the quote is finalized.
- Combine small repeat orders when schedule allows.
- Ask suppliers to split PCB, components, assembly, testing, coating, packaging, and shipping.
- Compare what is included, not only unit price.
Early PCB design and DFM support reduces avoidable cost. It helps catch layout, assembly, and test issues before they become purchasing delays or production changes.
What to Send for an Accurate PCB Assembly Quote
An accurate quote needs enough information to price the PCB, parts, assembly process, inspection, testing, and delivery.
Send these files and requirements when available:
| Item | Why it matters for cost |
|---|---|
| Gerber files | Defines the bare PCB, copper layers, solder mask, silkscreen, paste layers, and outline |
| Drill files | Defines plated holes, non-plated holes, slots, and finished hole sizes |
| BOM | Defines component cost, availability, alternates, and sourcing risk |
| Pick-and-place file | Gives placement position and rotation data for SMT parts |
| Assembly drawing | Clarifies polarity, special placement notes, connectors, and mechanical details |
| Test instructions | Defines inspection and functional test requirements |
| Firmware file details | Defines file version, loading method, and pass/fail rule when firmware is needed |
| Coating or enclosure requirements | Adds process steps, inspection, materials, and packaging needs |
| Quantity and target lead time | Affects per-board price, setup sharing, and delivery planning |
For a deeper file checklist, see PCB assembly files.
If you already have Gerber files, a BOM, pick-and-place data, and test requirements, send them to ACE Electronics for a PCB assembly quote. The team can review PCB fabrication, component sourcing, assembly, testing, coating, and final product assembly requirements together.
How to Compare PCB Assembly Quotes
A low quote may simply leave out important items. Check whether testing, fixtures, approved alternates, coating, packaging, and delivery are included.
Before choosing a quote, check these points:
| Quote item | What to check |
|---|---|
| PCB | Is the bare PCB included? Are specifications clear? |
| Components | Are exact MPNs quoted? Are alternates listed? |
| Assembly | Are SMT, through-hole, and mixed assembly steps included? |
| Testing | Are AOI, X-ray, ICT, FCT, or custom tests included or separate? |
| Fixtures | Are test fixtures included now or quoted later? |
| Extra services | Are coating, enclosure assembly, labeling, and packaging included? |
| Lead time | Does the schedule depend on all parts being available? |
| Shipping | Are delivery terms and destination clear? |
The right quote is not always the lowest quote. It is the quote that covers the real product requirements before production starts.
Frequently Asked Questions
How much does PCB assembly cost?
How much does PCB assembly cost?
PCB assembly cost changes with the bare PCB, BOM, component package types, SMT and through-hole count, testing, coating, quantity, lead time, and shipping. There is no fixed price that fits every PCBA. Small orders normally cost more per board because fewer boards share the same setup work.
What is included in a PCB assembly quote?
What is included in a PCB assembly quote?
A PCB assembly quote can include PCB fabrication, components, SMT assembly, through-hole assembly, setup, inspection, functional testing, firmware loading, coating, enclosure assembly, packaging, and shipping. Buyers should check whether each item is included or priced separately.
Why do PCB assembly quotes vary so much?
Why do PCB assembly quotes vary so much?
PCB assembly quotes vary because suppliers include different work. One quote may include PCB fabrication, parts, assembly, testing, coating, packaging, and shipping. Another quote may include only assembly labor. BOM choices, approved alternates, test requirements, quantity, and lead time also change the final price.
Is turnkey PCB assembly more expensive?
Is turnkey PCB assembly more expensive?
Turnkey PCB assembly often looks more expensive because it includes more work, such as PCB fabrication, component sourcing, assembly, and testing. It is not always more expensive for the whole project because it reduces purchasing work, handoffs, shortage risk, and responsibility gaps.
Does SMT assembly cost less than through-hole assembly?
Does SMT assembly cost less than through-hole assembly?
SMT assembly is often more efficient for higher quantities because placement and reflow are automated. Through-hole assembly is still needed for connectors, power parts, large components, or mechanical strength, but it can add manual insertion, wave soldering, selective soldering, and extra inspection.
How can I reduce PCB assembly cost?
How can I reduce PCB assembly cost?
Send complete files, clean the BOM, approve alternates, avoid rare packages when possible, reduce unnecessary through-hole parts, confirm test requirements early, and compare quotes by price row. Do not remove inspection or testing only to lower the first quote if the product risk is high.
What files are needed for an accurate PCB assembly quote?
What files are needed for an accurate PCB assembly quote?
For an accurate PCB assembly quote, send Gerber files, drill files, BOM, pick-and-place data, assembly drawings, test instructions, firmware file details if needed, target quantity, lead time, and shipping destination. Coating, enclosure assembly, labeling, and packaging requirements should also be included when they apply.
