LED PCB Assembly &
Lighting PCBA Manufacturing
ACE Electronics manufactures LED light boards for commercial fixtures, industrial equipment, medical examination lights and surgical lights, plus aluminum MCPCB assemblies, driver boards and lighting control PCBAs. Component sourcing, protective coating, electrical testing, integrating sphere measurement and environmental testing can be managed under one production workflow.
- FR-4, aluminum MCPCB and ceramic PCB assembly for different heat-dissipation, mechanical and cost requirements.
- Integrating sphere and high/low-temperature cycling testing to verify light output and operating stability before shipment.
- Conformal and Parylene coating options to protect lighting electronics from moisture, dust and corrosion.
LED Lighting PCBAs and Modules We Manufacture
ACE Electronics manufactures the light-emitting boards, driver power PCBAs, control and sensor boards, and test-ready LED modules used inside commercial, industrial, smart, medical examination and surgical lighting products.

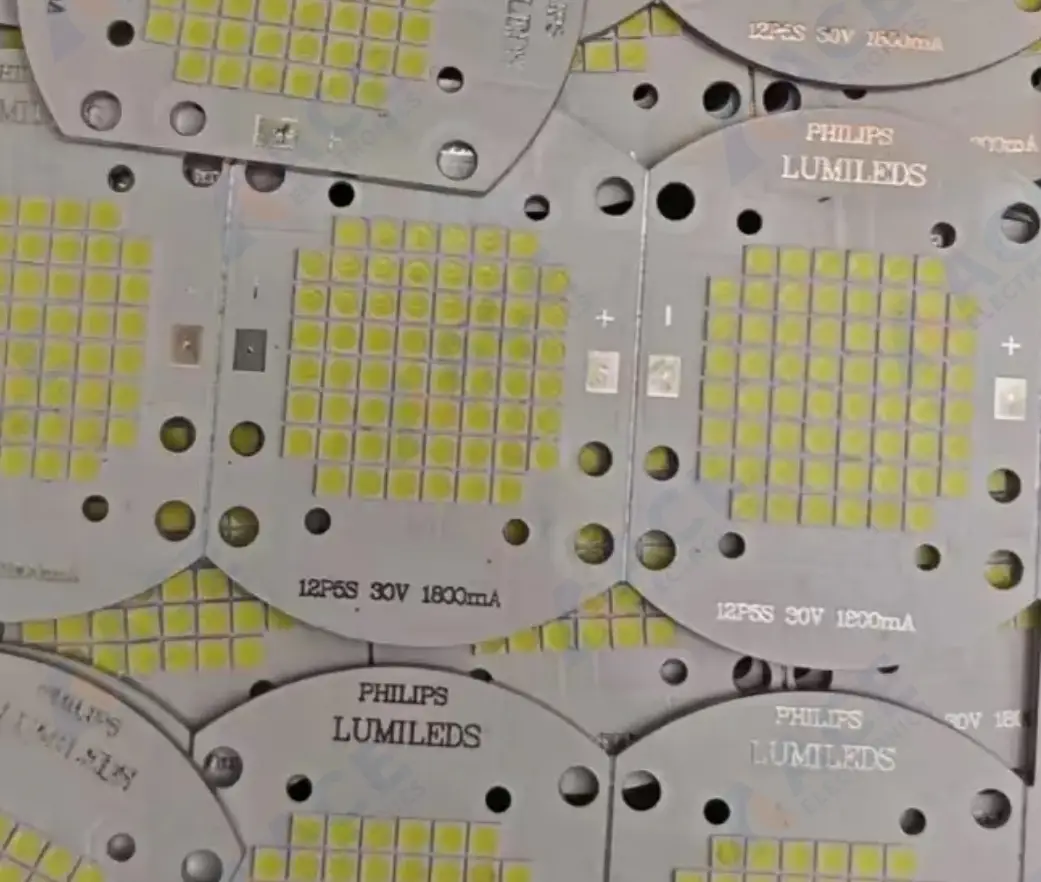

LED Light Source Boards
ACE Electronics manufactures LED array boards for panel lights, downlights, street lights, industrial luminaires, medical examination lights and surgical lights. FR-4, aluminum MCPCB, copper MCPCB or ceramic substrates can be used according to the approved electrical and thermal requirements.

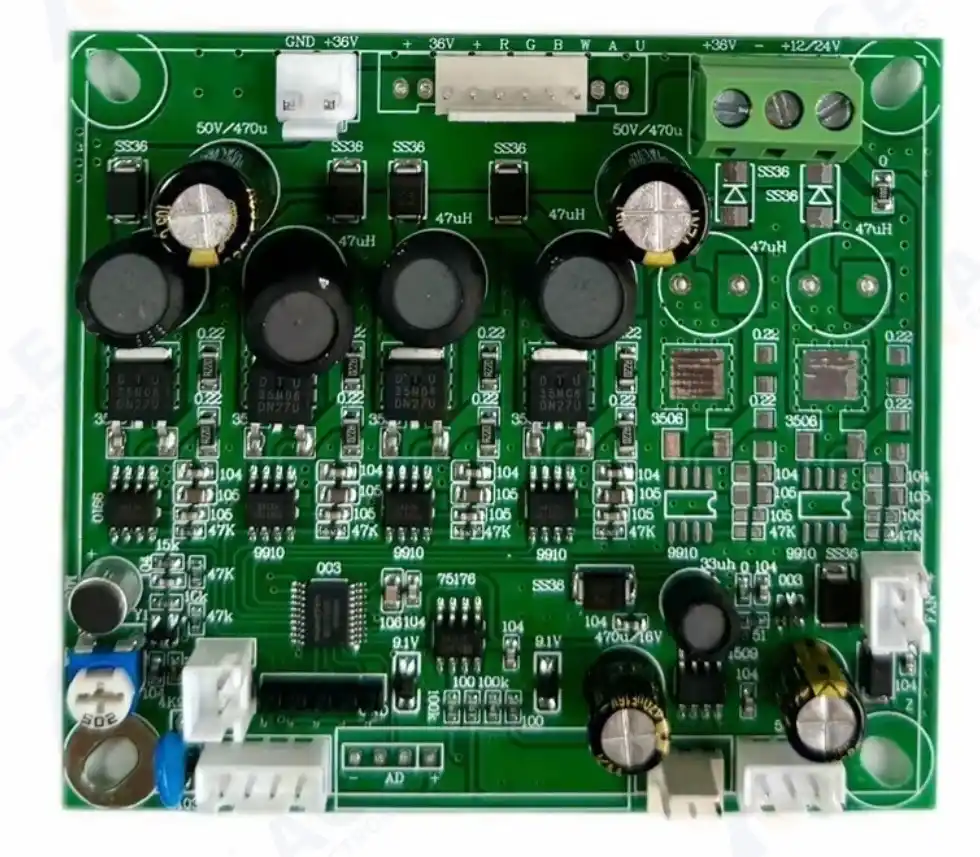

LED Driver Power PCBAs
Power boards that convert the input supply into stable current and help protect the LEDs from electrical instability.
Examples: constant-current, AC/DC, dimmable and emergency-lighting driver boards.

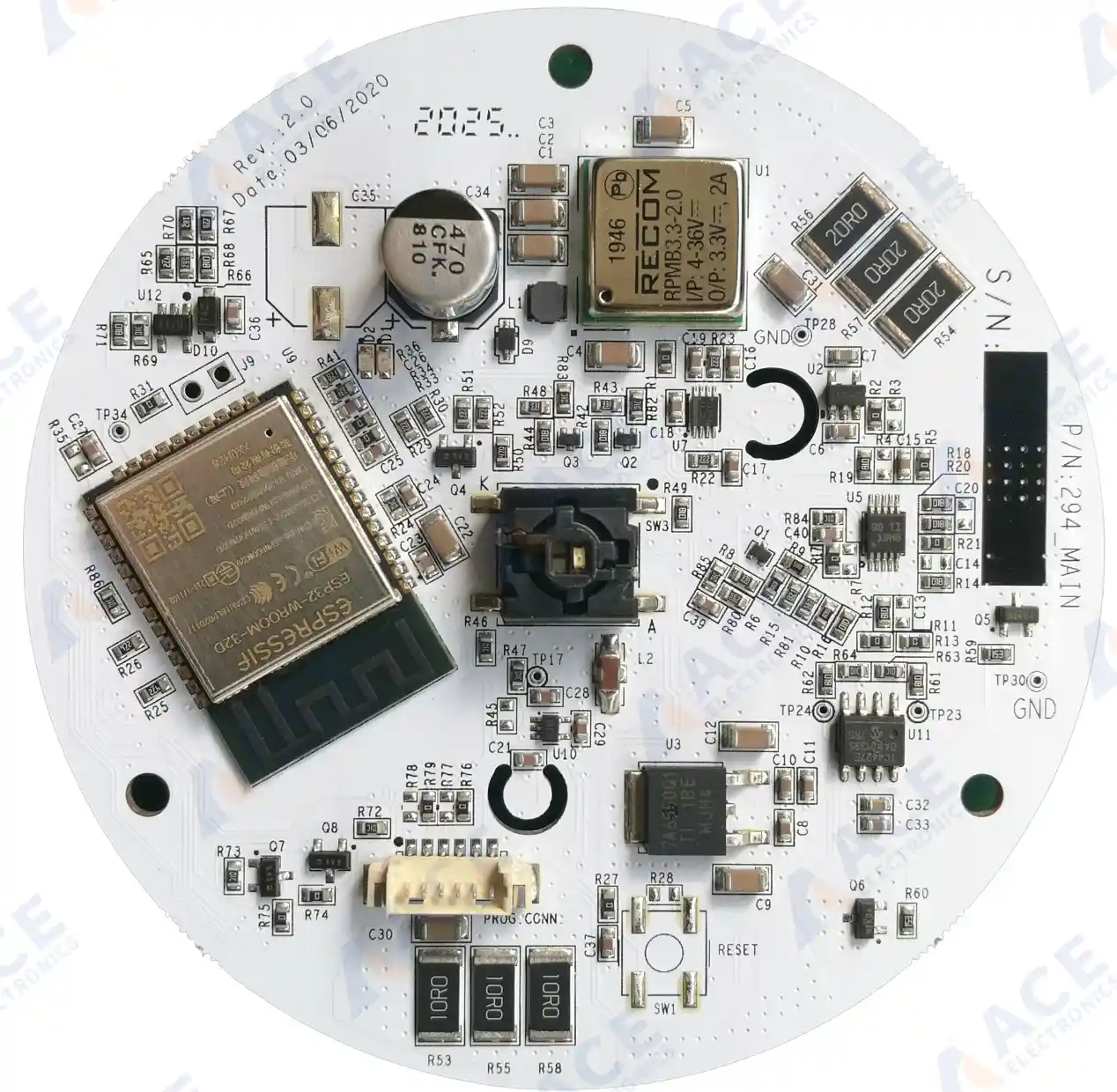

Lighting Control & Sensor PCBAs
Control boards for brightness, color temperature, timing, sensing and communication functions.
Examples: dimming boards, motion or daylight sensors, CCT/RGB controllers and communication boards.
LED Modules & Luminaire Subassemblies
LED boards integrated with selected mechanical and electrical parts to create a testable lighting subassembly.
Can include: cables, connectors, lenses, reflectors, heat sinks, brackets and housing parts.
LED Lighting PCBA Project Gallery

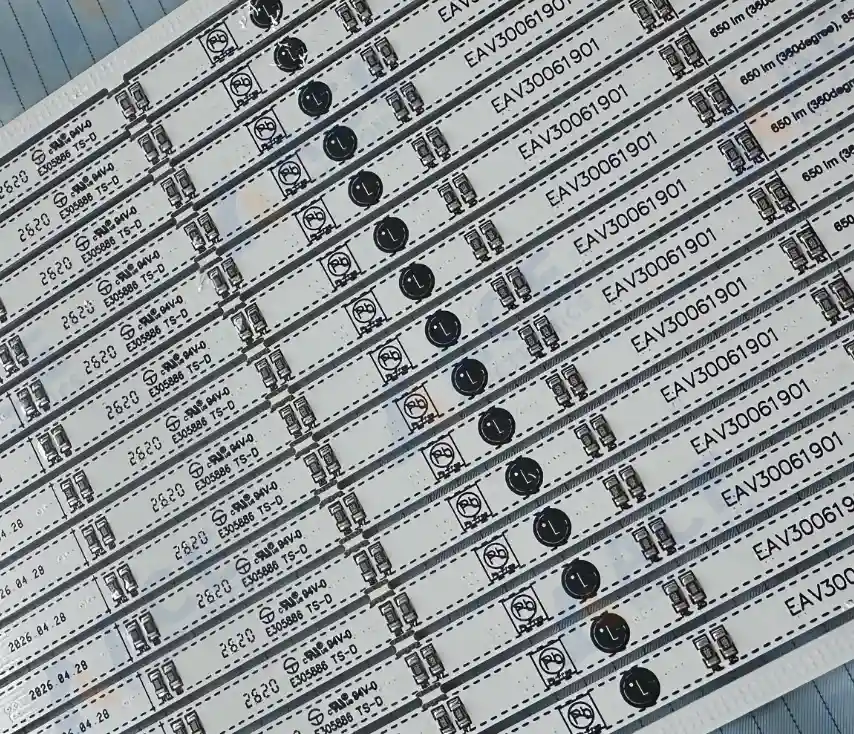

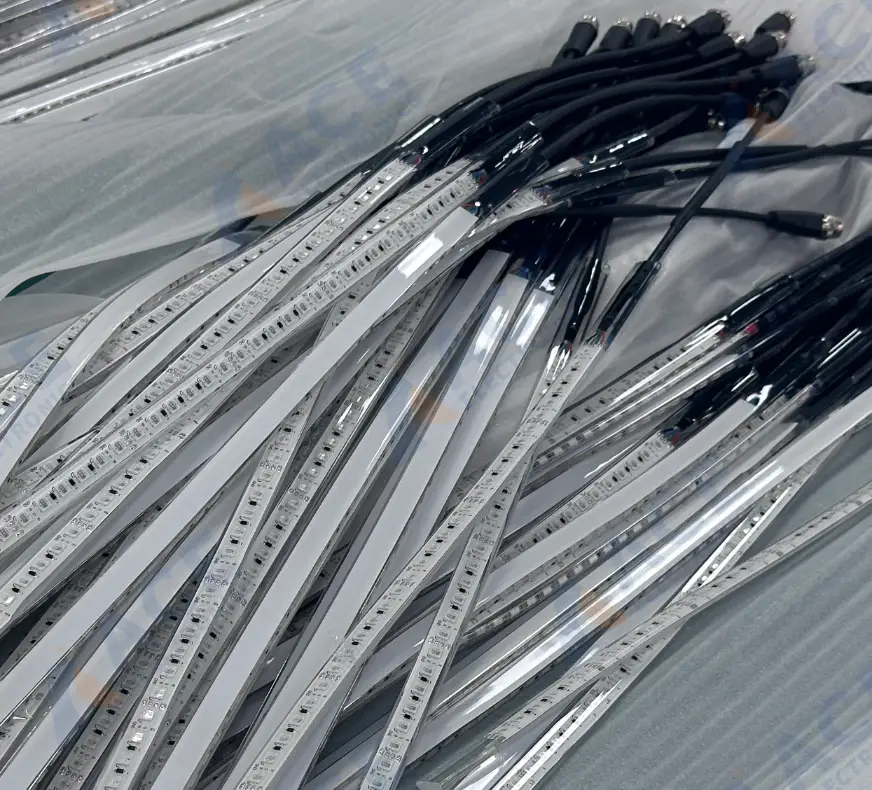

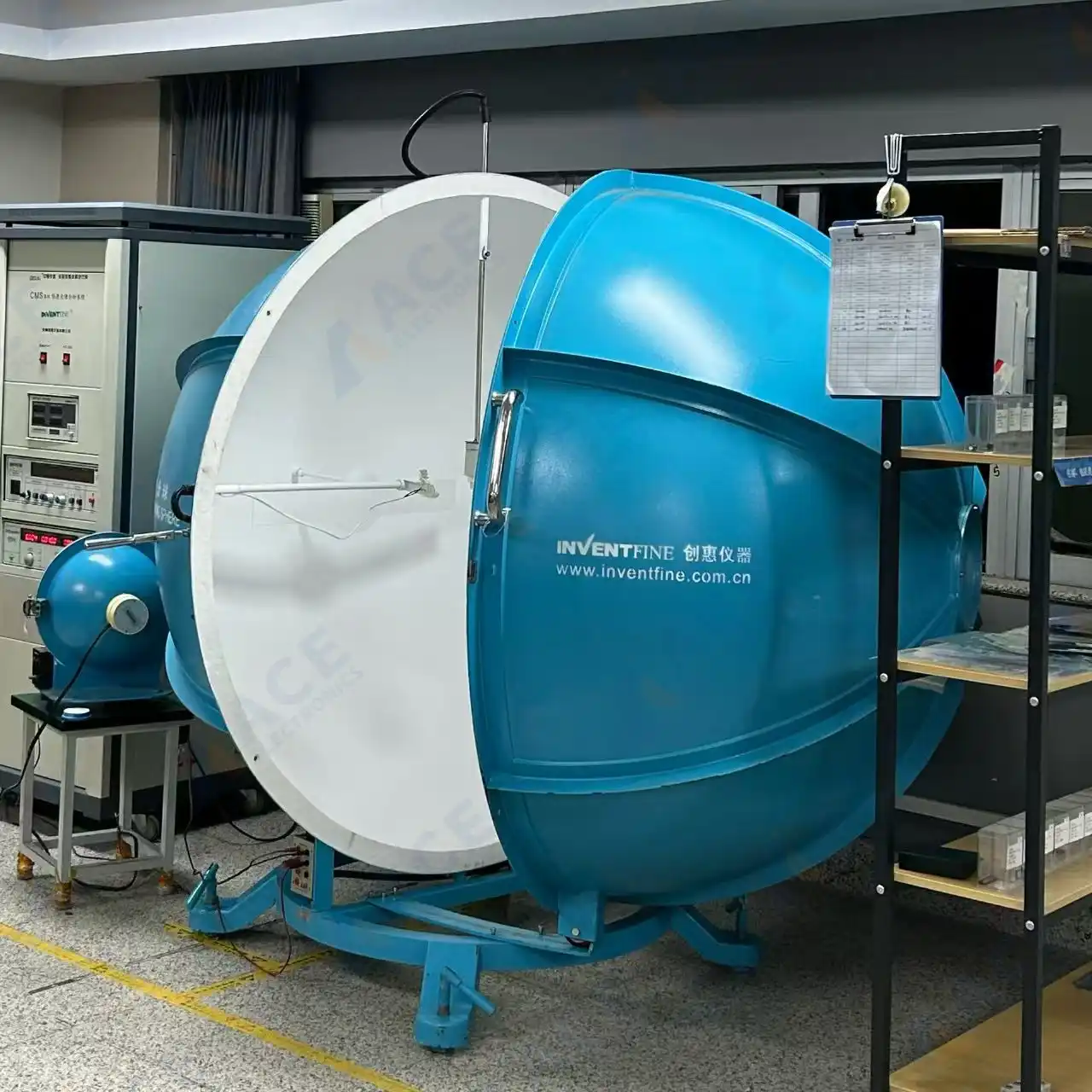

See ACE Electronics' in-house integrating sphere equipment, LED optical testing, Everlight LED strip assembly and LG LED light board manufacturing.
LED PCB Assembly Process
A controlled five-step workflow from board and LED specification review to electrical testing, optical verification and protective packing.
File, BOM and LED Specification Review
Check the BOM, Gerber files, placement data, LED part numbers, board material and required test items before production.
PCB or MCPCB Fabrication
Produce FR-4, aluminum, copper-base or specified boards to the approved stackup, copper, surface finish, outline and panel design.
SMT Placement and Reflow
Apply solder paste, verify LED polarity, place LEDs and supporting components, then complete the approved reflow process.
Inspection and Electrical Test
Use SPI, AOI and visual inspection as applicable, followed by power-on, voltage, current and functional checks.
Optical Verification and Packing
Verify the required light-output parameters with integrating sphere testing, then complete appearance checks, labeling and protective packing.
Common PCB Materials for LED Lighting Products
| PCB Material | Typical LED Products | Relative Thermal Performance | Relative Cost |
|---|---|---|---|
| FR-4 PCB | LED displays, indicators, driver boards, control PCBAs and lower-power rigid light boards | Lower thermal performance | Low |
| Flexible PCB / FPC | Flexible LED strips, curved lighting, automotive ambient lighting and backlight assemblies | Lower thermal performance that depends on the mounting structure | Low to moderate |
| Aluminum MCPCB | Bulb lights, downlights, panel-light source boards, street lights, high-bay lights and high-power LED modules | Good thermal performance | Moderate |
| Copper MCPCB | High-power LED, UV LED, automotive headlights, stage lighting and high-heat-flux modules | Very good thermal performance | High |
| Ceramic Substrate | High-power UV LED, medical lighting, aerospace electronics and high-reliability LED modules | Very good to excellent thermal performance with stable insulation | Very high |
LED Component Sourcing and Batch Consistency
ACE Electronics purchases to the approved BOM and confirms the component details that can affect appearance, light output and repeat production.
Approved Part Number
Source the specified LED manufacturer, part number, package and electrical rating. Proposed substitutions require customer approval.
Brightness and Color
Where the product has strict visual requirements, confirm the supplier-assigned brightness group, color temperature or color coordinates listed in the specification.
Production Batch
Record date code and lot information when required, reducing avoidable differences between repeat orders.
Approval Workflow
ACE Electronics does not replace the specified LED brand, package or performance group without written customer approval.
LED Optical, Electrical and Environmental Testing
ACE Electronics uses project-specific inspection and test steps to identify light-output, soldering and temperature-related problems before LED boards enter final assembly or shipment.

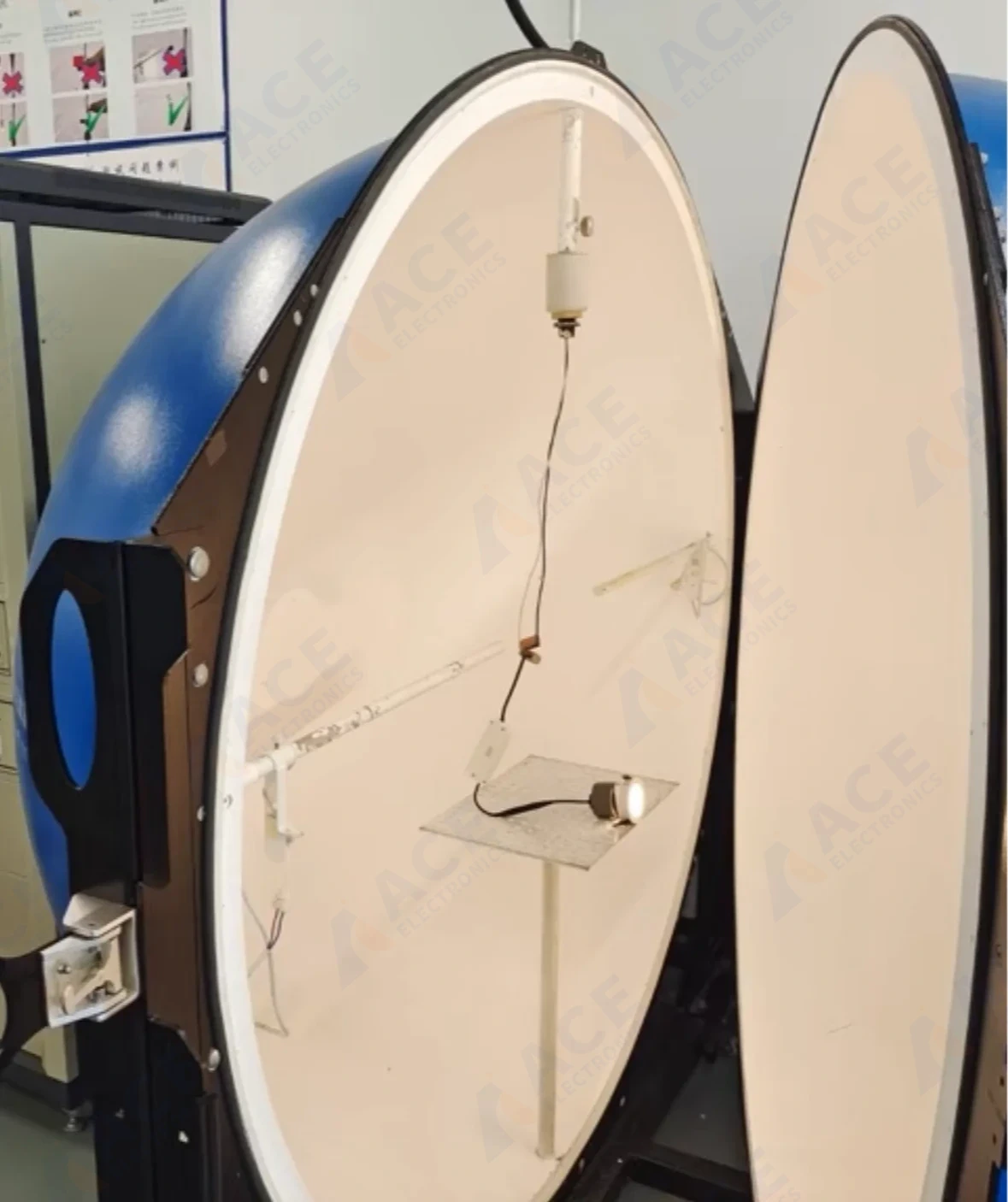

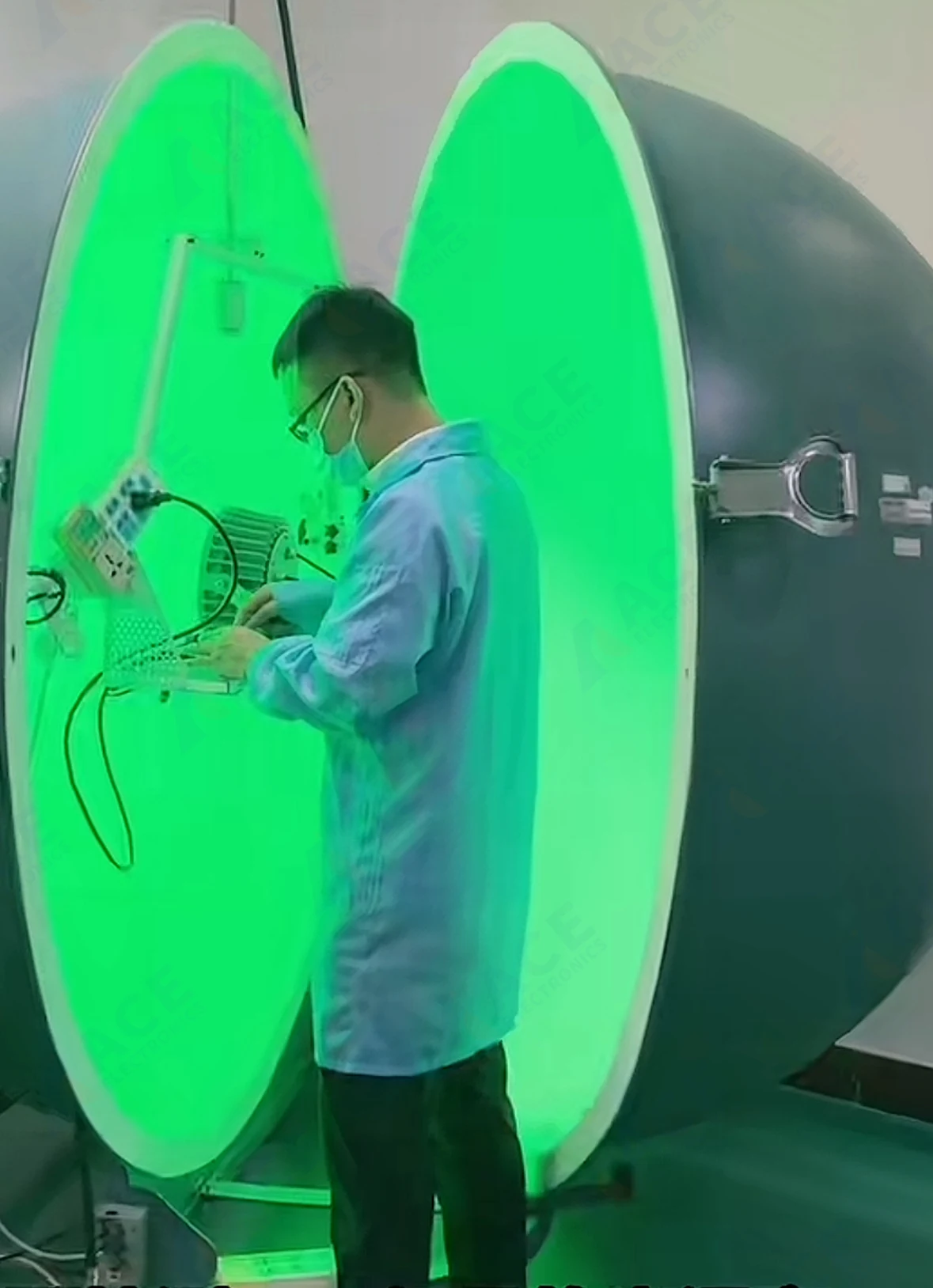

Integrating Sphere Testing
Verify whether an assembled LED board or lighting module meets the required brightness, color and efficiency range before shipment.
- Luminous flux
- Color temperature
- Color rendering index (CRI)
- Chromaticity coordinates
- Luminous efficacy
- Batch comparison records

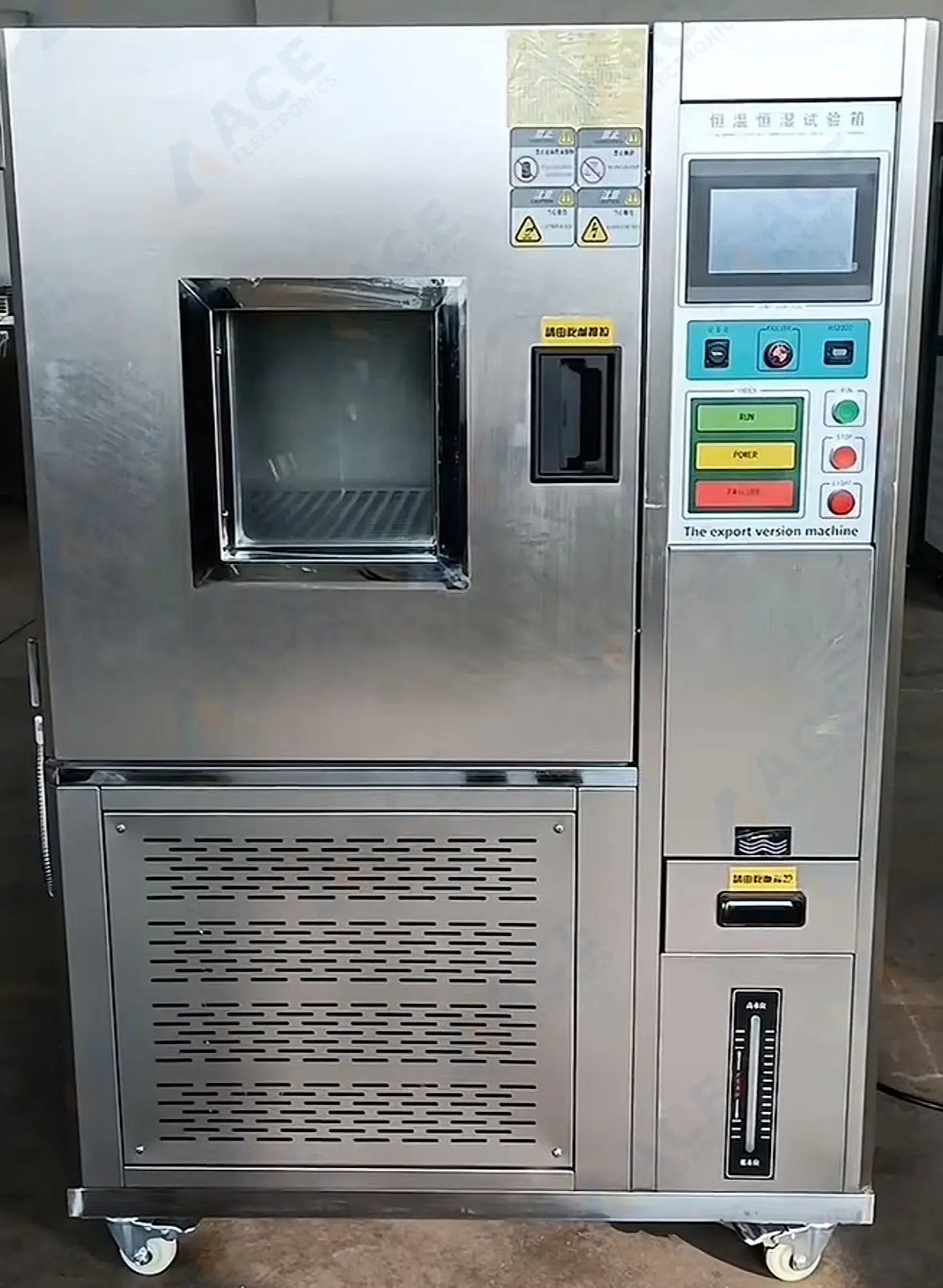

High/Low-Temperature Cycling Testing
Check operating stability and expose temperature-related failures before the lighting electronics enter field use.
- Power-on and functional checks before and after cycling
- Light-output and operating-state comparison
- Visual inspection for soldering, component and coating abnormalities
- Cycle and inspection records according to the approved test plan
Other Inspection and Testing Methods
LED Lighting Technical Guides
Read practical guides covering LED optical measurement, integrating sphere reports and high/low-temperature cycling verification.

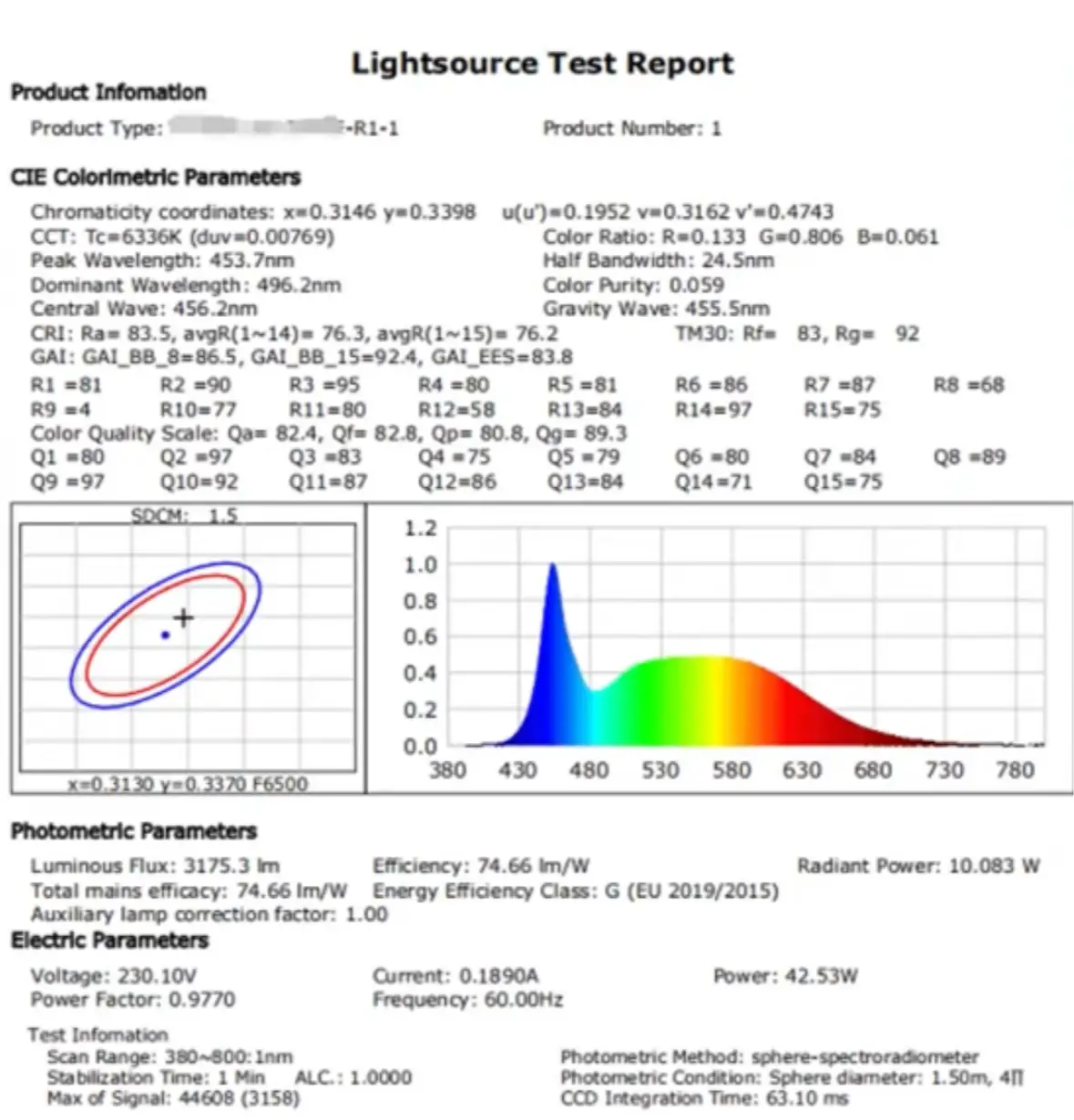

How to Read an LED Integrating Sphere Test Report
Learn how to interpret luminous flux, luminous efficacy, CCT, chromaticity coordinates, Duv, SDCM, CRI, R9, TM-30, spectral distribution and electrical data using real LED test reports.
Read Tech Guide
LED PCBA Testing: Optical and Temperature-Cycling Methods
See how integrating sphere measurement and high/low-temperature cycling are used to verify light output, color performance, electrical operation and temperature-related reliability before shipment.
Read Tech GuideChina-Based LED PCB & PCB Assembly Manufacturer
Shenzhen ACE Electronics Co., Ltd is a China-based Electronic Manufacturing Services (EMS) provider specializing in turnkey assembly for electronics companies, hardware developers, and solution providers in Europe and North America.
From concept design to mass production, we handle PCB fabrication, component sourcing (traceable originals & cost-effective alternatives), PCB Assembly, conformal coating, cable assembly, injection molding, CNC machining, IC programming, box build assembly, testing, and packaging.
Serving industries: LED, Industrial Automation & IIoT, Automotive Electronics, Robotics & Unmanned Systems, Medical & Healthcare, Telecommunication.
LED PCB Assembly FAQs
Common questions about LED light boards, aluminum MCPCB assembly, protective coating, optical testing and high/low-temperature cycling testing.
