What Is ENEPIG PCB Surface Finish? Benefits, Cost, and When to Use It

ENEPIG is a high-reliability PCB surface finish used when a board needs more than standard solderability.

It is often selected for wire bonding, BGA, fine-pitch packages, advanced packaging, and products where solder joint reliability matters more than the lowest PCB price.

ENEPIG stands for Electroless Nickel Electroless Palladium Immersion Gold. It adds a palladium layer between nickel and gold. This palladium layer is the main reason ENEPIG can reduce nickel corrosion risk, support wire bonding, and provide stronger reliability margin than standard ENIG in demanding applications.

For most normal SMT boards, ENIG may be enough. For boards that need soldering, wire bonding, high-reliability performance, or stronger control of ENIG-related black pad risk, ENEPIG is worth reviewing before PCB release.

Before sending files for PCB fabrication service, PCB designers should understand what ENEPIG does, where it helps, and where it may be over-specified.

Quick Answer: What Is ENEPIG?

ENEPIG is a PCB surface finish made of three metallic layers over exposed copper pads.

Layer	Full name	Main role
EN	Electroless Nickel	Barrier layer and solderable base
EP	Electroless Palladium	Barrier layer that protects nickel and supports bonding
IG	Immersion Gold	Protects palladium before soldering or bonding

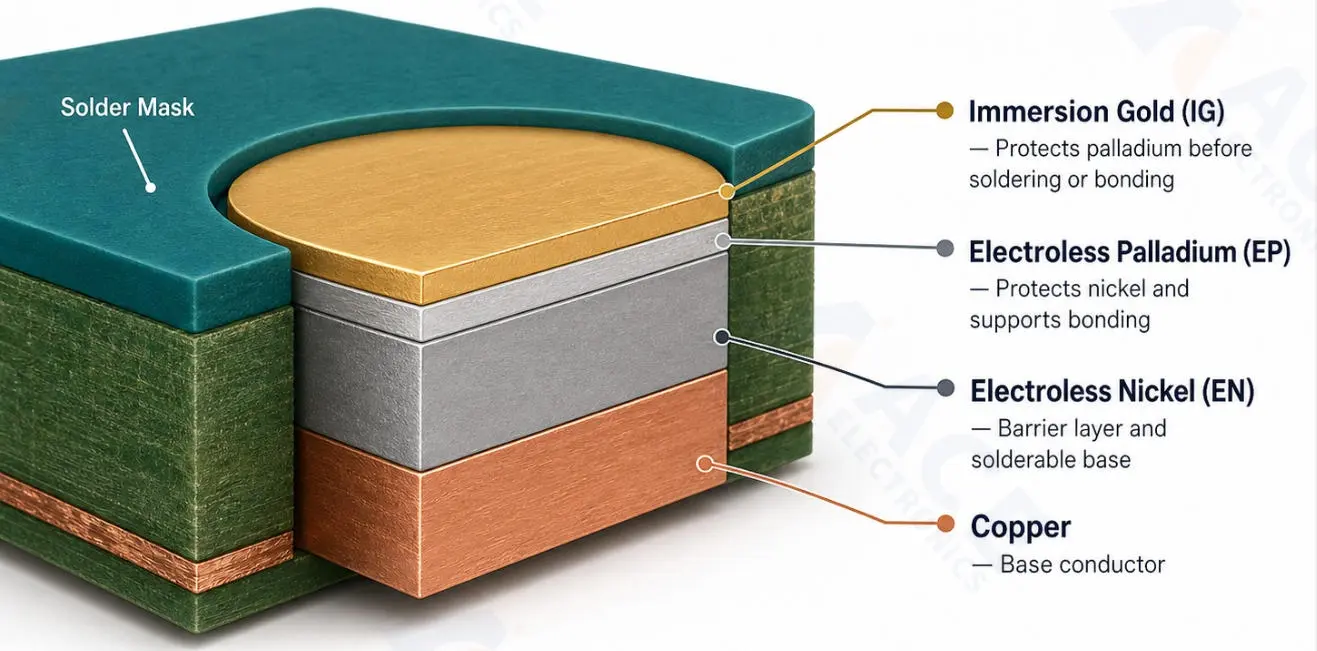

The typical structure is:

Copper / Electroless Nickel / Electroless Palladium / Immersion Gold

Simple explanation:

Nickel provides the main solderable barrier over copper.
Palladium helps protect nickel from corrosion and improves bonding reliability.
Gold protects the palladium surface from oxidation and contamination.
The result is a flat, solderable, bondable, lead-free finish for demanding PCB applications.

ENEPIG uses nickel, palladium, and gold layers to support solderability, wire bonding, and high-reliability assembly.

How ENEPIG Works on a PCB

A bare PCB has exposed copper pads. Copper oxidizes easily, so the surface finish must protect the copper and provide a solderable surface for assembly.

With ENEPIG, the PCB fabricator deposits three layers:

Electroless nickel is plated over copper.
Electroless palladium is plated over nickel.
Immersion gold is deposited over palladium.

During soldering, the thin gold layer dissolves into the solder. The solder joint forms through the noble metal finish system, with the nickel layer acting as the main barrier. The palladium layer helps protect nickel and improves reliability in soldering and bonding applications.

This makes ENEPIG different from ENIG PCB surface finish, which uses only nickel and gold.

Why the Palladium Layer Matters

The palladium layer is the key difference between ENIG and ENEPIG.

In ENIG, immersion gold is deposited directly over electroless nickel. If the gold process is not controlled well, the nickel surface can be attacked. This may contribute to nickel corrosion and black pad risk.

In ENEPIG, palladium sits between nickel and gold. This barrier helps reduce direct nickel attack during the final gold process and improves surface stability for wire bonding.

For PCB designers, the palladium layer provides three practical benefits:

It helps reduce nickel corrosion risk compared with ENIG.
It supports gold, aluminum, and copper wire bonding in suitable processes.
It gives more reliability margin for advanced and high-reliability applications.

If your main concern is ENIG nickel corrosion, read our guide to ENIG black pad and phosphorus-rich layer.

ENEPIG Manufacturing Process

ENEPIG is not just "adding gold" to the PCB.

A typical ENEPIG process includes:

Copper surface cleaning
Micro-etching and surface activation
Electroless nickel deposition
Electroless palladium deposition
Immersion gold deposition
Rinsing and drying
Thickness inspection and surface quality check

The process is more complex than OSP, HASL, or standard ENIG because it adds the palladium step and requires tighter chemistry control.

Typical ENEPIG Thickness

ENEPIG thickness should follow the agreed IPC or customer specification. The exact range depends on the PCB supplier, application, customer standard, and whether the board needs soldering, wire bonding, or contact performance.

A common engineering view is:

Layer	Typical purpose	What designers should confirm
Nickel	Barrier and solderable base	Is the nickel thickness controlled by IPC or customer spec?
Palladium	Nickel protection and bonding support	Is the palladium thickness suitable for bonding or soldering?
Gold	Surface protection	Is the immersion gold controlled without over-specifying?

For production drawings, a clearer fabrication note may be:

Surface finish: ENEPIG per IPC-4556 or customer-approved equivalent. Lead-free assembly compatible. Nickel, palladium, and gold thickness per applicable specification. Wire bonding requirement to be confirmed before production, if applicable.

Before production, confirm the exact note with your PCB fabricator and customer quality requirement.

Main Benefits of ENEPIG PCB Surface Finish

1. Good Solderability for Fine-Pitch and High-Density Boards

ENEPIG provides a flat and stable surface for SMT assembly.

It is suitable for:

BGA
QFN
LGA
CSP
Fine-pitch ICs
HDI boards
Dense SMT layouts
Lead-free reflow

Like ENIG, ENEPIG is much flatter than HASL. This makes it useful when pad coplanarity matters.

For BGA-specific surface finish selection, see our guide to the best PCB surface finish for BGA assembly.

2. Strong Wire Bonding Capability

Wire bonding is one of the strongest reasons to choose ENEPIG.

ENEPIG is commonly selected when a board needs both:

SMT soldering
Wire bonding

This matters in products such as:

RF modules
Sensor modules
Hybrid assemblies
Chip-on-board designs
Optical modules
Medical electronics
Aerospace electronics
Advanced package assemblies

ENIG is widely used for soldering, but it is not the same as ENEPIG for wire bonding. If wire bonding is required, ENEPIG should be reviewed early with the PCB fabricator and assembly supplier.

3. Lower Black Pad Risk Than ENIG

ENEPIG is often used to reduce black pad risk associated with poorly controlled ENIG plating.

Black pad is not a normal feature of ENIG. It is a plating process defect linked with nickel corrosion and weak solder joint interfaces.

The palladium layer in ENEPIG helps protect the nickel layer and reduces direct interaction between nickel and immersion gold. This can lower the risk of nickel corrosion-related defects.

ENEPIG can significantly reduce ENIG-related nickel corrosion and black pad risk, but it still depends on qualified PCB fabrication and plating control.

4. Suitable for High-Reliability Products

ENEPIG is often used when the cost of failure is much higher than the cost of the surface finish.

Typical high-reliability applications include:

Medical electronics
Aerospace electronics
Defense electronics
Automotive electronics
Industrial control boards
Test and measurement equipment
Long-life embedded systems

For these products, surface finish is not only a PCB cost item. It is part of the reliability strategy.

5. Lead-Free and RoHS-Compatible

ENEPIG is lead-free and compatible with lead-free assembly.

It is commonly used in modern electronics that require RoHS-compliant manufacturing, lead-free soldering, and stable surface quality for advanced SMT packages.

ENEPIG vs ENIG vs Soft Gold vs Hard Gold

Your surface finish choice should match the pad function.

ENEPIG is sometimes confused with ENIG, soft gold, and hard gold because all of them may involve nickel and gold. They are not interchangeable.

Finish	Typical structure	Best use	Buyer/designer warning
ENIG	Nickel + immersion gold	General BGA, QFN, fine-pitch SMT	Good all-purpose SMT finish, but black pad risk depends on process control
ENEPIG	Nickel + palladium + immersion gold	Wire bonding, high-reliability, advanced packages	Higher cost, stronger reliability margin
Soft gold	Electroplated nickel + soft gold	Some bonding and special contact applications	Usually needs plating leads or special design consideration
Hard gold	Electroplated nickel + hard gold	Edge fingers, contacts, wear surfaces	Good for abrasion, not usually chosen as a general SMT finish

The key point:

ENEPIG is a solderable and bondable surface finish. Hard gold is mainly for contact wear resistance. Do not use ENEPIG as a direct replacement for hard gold edge contacts without reviewing the actual contact requirement.

When Should You Use ENEPIG?

ENEPIG is a good choice when the board needs both solderability and stronger reliability margin.

Use ENEPIG when one or more of these conditions apply:

Project condition	Is ENEPIG worth reviewing?	Why
Wire bonding required	Yes	ENEPIG supports bonding better than ENIG
BGA or fine-pitch packages	Often	Flat finish and stable solderability
High-reliability product	Yes	Better reliability margin
Customer concern about black pad	Yes	Palladium helps reduce nickel corrosion risk
Advanced packaging	Yes	Supports soldering and bonding needs
Medical, aerospace, automotive, defense use	Often	Failure cost is high
Simple SMT board	Usually not	ENIG, OSP, or HASL may be enough
Very cost-sensitive product	Usually not	ENEPIG may be over-specified

When ENEPIG Is More Than You Need

ENEPIG is not always the best choice. You may be paying for more than you need when:

The board has only simple SMT components
There is no wire bonding
The product is not high-reliability
ENIG already meets the customer requirement
Cost is the main priority
Lead time is tight
The supplier has limited ENEPIG capability
The design does not need advanced package support

For example, a standard industrial controller with QFN parts may work very well with ENIG. Paying extra for ENEPIG may not improve the final product enough to justify the added cost.

If your board mainly needs flatness and good solderability, ENIG is often the better cost-performance choice.

For a direct comparison, read our guide to ENIG vs ENEPIG surface finish.

ENEPIG vs ENIG: Simple Difference

ENIG and ENEPIG are related, but they are not the same.

Finish	Layer structure	Best use
ENIG	Copper / Nickel / Gold	BGA, fine-pitch SMT, good shelf life, general high-reliability PCBA
ENEPIG	Copper / Nickel / Palladium / Gold	Wire bonding, high-reliability, stronger black pad risk reduction, advanced packaging

ENIG is usually enough for many SMT and BGA projects.

ENEPIG becomes more attractive when the board needs wire bonding, higher reliability margin, or stronger protection against nickel corrosion risk.

Do not make the decision only by asking which finish is "better." The better question is:

Does this design need the palladium layer enough to justify the added cost and process control?

ENEPIG vs OSP: Different Use Cases

ENEPIG and OSP solve very different problems.

OSP is a low-cost organic surface finish for boards that can move quickly from fabrication to assembly. It is useful for cost-sensitive, controlled production.

ENEPIG is a high-reliability metallic finish for boards that need solderability, bonding capability, and stronger reliability margin.

Finish	Best for	Main limitation
OSP	Cost-sensitive boards assembled soon after fabrication	Shorter storage and narrower process window
ENEPIG	High-reliability, wire bonding, advanced packages	Higher cost and more specialized process

If cost is the main driver and the assembly schedule is controlled, read our guide to OSP PCB surface finish.

Design Checklist Before Specifying ENEPIG

Before sending files for PCB fabrication service, designers should confirm whether the board needs soldering only, wire bonding only, or both soldering and bonding.

Before choosing ENEPIG, PCB designers should ask:

Does the board require wire bonding?
Does the product have high-reliability requirements?
Is the customer concerned about ENIG black pad risk?
Does the design use BGA, CSP, flip-chip, QFN, or fine-pitch ICs?
Is the product used in medical, aerospace, automotive, defense, or harsh industrial environments?
Does the customer specification require IPC-4556?
Does the PCB supplier have proven ENEPIG process capability?
Will ENEPIG affect lead time or cost?
Is ENIG already enough for this design?
Are the fabrication notes clear enough before Gerber release?
Are any pads intended for repeated contact or wear?
Should hard gold be used for edge fingers instead of ENEPIG?

If several answers point to bonding, reliability, or black pad risk reduction, ENEPIG is worth reviewing.

If most answers are no, ENIG or another finish may be enough.

Common Mistakes When Specifying ENEPIG

Mistake 1: Using ENEPIG Only Because It Sounds More Advanced

ENEPIG is advanced, but that does not mean every board needs it.

If the design only has standard SMT components and no special reliability requirement, ENIG may be enough.

Mistake 2: Confusing ENEPIG With Hard Gold

ENEPIG is not the same as hard gold.

Hard gold is usually used for edge fingers and contact surfaces that need wear resistance. ENEPIG is mainly used for solderability, bondability, and high-reliability assembly.

If the PCB has edge connectors, card-edge fingers, or sliding contacts, review whether hard gold is required.

Mistake 3: Not Telling the Supplier About Wire Bonding

If wire bonding is required, do not assume the supplier will know from the word ENEPIG alone.

Bonding requirements should be communicated before fabrication, because pad design, surface finish control, inspection, and assembly process all matter.

What ACE Electronics Reviews Before ENEPIG PCB Fabrication

At ACE Electronics, we review ENEPIG as part of the PCB fabrication and assembly risk, not just as a surface finish name.

For ENEPIG projects, we may review:

Gerber files
Stackup
BGA and fine-pitch areas
Wire bonding requirement
Solder mask opening design
Surface finish notes
Customer reliability standard
IPC-4556 or customer specification
Storage and packaging requirement
Assembly and testing plan
Whether hard gold is needed for contact areas
Whether ENIG is enough or ENEPIG is justified

ACE provides PCB fabrication service for prototype, small-batch, and production boards, including high-reliability surface finish review before manufacturing.

For projects that also need component sourcing, SMT assembly, testing, and shipment, ACE can support the full flow as a turnkey PCBA factory.

Final Recommendation

ENEPIG is not just a more expensive version of ENIG.

It is a specialized PCB surface finish for boards that need solderability, wire bonding capability, and stronger reliability margin.

Use ENEPIG when:

Wire bonding is required
The product is high-reliability
Advanced packages are used
Black pad risk reduction is important
The cost of failure is much higher than the finish cost
The customer specification calls for ENEPIG or IPC-4556

Do not use ENEPIG only because it sounds more advanced. If ENIG already meets the design and reliability requirement, ENIG may be the better cost-performance choice.

Before you release the Gerber files, ask one question:

Does this PCB need the palladium layer for bonding or reliability, or is ENIG enough?

That answer should drive the surface finish decision.

Related Guides and Services

For fabrication support, visit: PCB Fabrication Service
For ENIG basics, read: What Is ENIG PCB Surface Finish?
For direct comparison, read: ENIG vs ENEPIG Surface Finish
For ENIG reliability risk, read: ENIG Black Pad and Phosphorus-Rich Layer
For BGA projects, read: Best PCB Surface Finish for BGA Assembly
For all common finish options, read: How to Choose PCB Surface Finish
For cost-sensitive finish selection, read: What Is OSP PCB Surface Finish?

+++FAQ+++

What is ENEPIG used for?

ENEPIG is used for high-reliability PCB fabrication, wire bonding, BGA, fine-pitch packages, advanced packaging, and products where solderability and bonding reliability are important.

Is ENEPIG better than ENIG?

ENEPIG is better when the design needs wire bonding, stronger black pad risk reduction, or higher reliability margin. For many standard SMT and BGA boards, ENIG may be enough.

Why is ENEPIG more expensive?

ENEPIG adds an electroless palladium layer between nickel and gold. Palladium material cost, extra plating steps, tighter process control, and inspection requirements increase cost.

Does ENEPIG prevent black pad?

ENEPIG can significantly reduce ENIG-related nickel corrosion and black pad risk because the palladium layer protects the nickel surface. However, it still requires proper plating process control.

Is ENEPIG good for wire bonding?

Yes. ENEPIG is commonly used when PCBs require wire bonding as well as soldering. It supports bonding applications better than standard ENIG.

Is ENEPIG the same as hard gold?

No. ENEPIG is mainly used for solderability, bondability, and high-reliability assembly. Hard gold is usually used for edge fingers, contact pads, and wear surfaces.

Which IPC standard applies to ENEPIG?

IPC-4556 is commonly referenced for ENEPIG plating on printed boards. Designers should confirm the exact specification and revision with the customer and PCB fabricator.

Should I use ENEPIG for every BGA board?

No. Many BGA boards work well with ENIG. ENEPIG should be reviewed when the board also needs wire bonding, high-reliability performance, or stronger black pad risk reduction.
