When to use Immersion Silver PCB Surface Finish?

Immersion silver PCB surface finish, also called ImAg, is a thin silver finish deposited directly on exposed copper pads. It gives the PCB a flat, solderable, lead-free, and highly conductive surface.

Use immersion silver when you need a nickel-free surface finish for RF, high-speed, fine-pitch SMT, or BGA assembly.

For a broader comparison of common finishes, read ACE Electronics' guide to PCB surface finish selection. This article focuses only on immersion silver.

Quick Answer: What Is Immersion Silver?

Immersion silver is a chemical PCB surface finish that deposits a thin silver layer directly over copper. The silver protects copper from oxidation and provides a solderable metallic surface for assembly.

Item	Practical answer
Full name	Immersion Silver
Finish structure	Copper pad + thin silver layer
Typical silver thickness	5-18 microinches, about 0.12-0.45 um
Nickel layer	No
Lead-free	Yes
Surface flatness	Excellent
Main advantages	Conductivity, flatness, solderability, lower cost than ENIG
Main limitations	Tarnish risk, handling sensitivity, controlled storage requirement
Best fit	RF, high-speed, fine-pitch SMT, BGA, lead-free assembly with controlled timing
Common reference standard	IPC-4553 for immersion silver plating on printed boards

Immersion silver often gives a metallic, highly conductive finish at a lower cost than ENIG, while requiring more storage and handling control process.

How Immersion Silver Works

Immersion silver is applied through a displacement reaction. During PCB fabrication, exposed copper pads are cleaned, micro-etched, and immersed in a silver chemistry. Silver deposits on the copper surface and forms a thin protective layer.

A simple layer structure:

Layer	Role
Copper pad	Conductive PCB pad or trace surface
Immersion silver	Protects copper and provides solderable metallic surface

Unlike ENIG, immersion silver does not include a nickel barrier layer. This makes it useful for signal-sensitive designs where the surface finish is part of the electrical performance decision.

The finish is thin and flat, so it works well with dense component layouts, fine-pitch SMT, BGA, QFN, LGA, and lead-free soldering.

Typical Immersion Silver Thickness

A common immersion silver thickness range is:

5-18 microinches
0.12-0.45 um

Thickness item	Common reference
Immersion silver deposit	5-18 microinches
Metric equivalent	About 0.12-0.45 um
Layer structure	Silver directly over copper

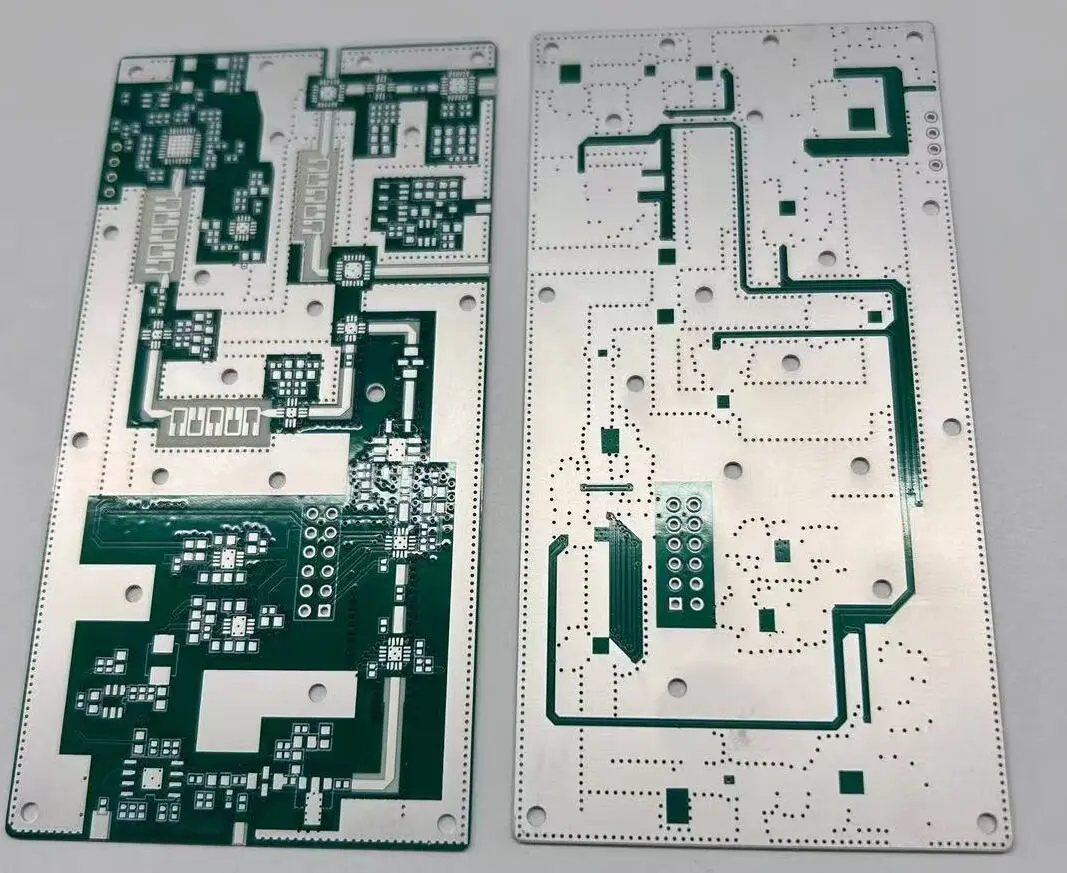

Why Use Immersion Silver for RF and High-Speed PCBs?

Immersion silver is often a strong choice for RF and high-speed PCB designs because it is nickel-free.

ENIG has this structure:

Copper
Nickel
Thin gold

Immersion silver has this structure:

Copper
Thin silver

Nickel has lower electrical conductivity than copper and silver. At high frequencies, current flows closer to the conductor surface because of skin effect. When the surface finish is part of the signal path, the nickel barrier in ENIG can add surface-finish-related loss.

Immersion silver avoids that nickel layer. This makes it attractive for:

RF traces
Antenna feed lines
GHz-level interconnects
High-speed differential pairs
Low-loss signal paths
Signal-sensitive connector launches
Fine-pitch RF or high-speed components

Surface finish is still only one part of signal integrity. Review immersion silver together with laminate material, copper roughness, stackup, impedance control, trace geometry, via transitions, connector launches, solder mask over RF traces, and return path continuity.

When Should You Use Immersion Silver?

Use immersion silver when the design needs high conductivity, flat pads, and controlled assembly timing.

Project requirement	Immersion silver fit
RF traces or antenna feed lines	Strong fit
GHz-level high-speed signal paths	Strong fit
Fine-pitch SMT	Strong fit
BGA / QFN / LGA assembly	Strong fit
Lead-free soldering	Strong fit
Lower cost than ENIG	Strong fit
Long warehouse storage	ENIG may be easier to manage
Uncontrolled handling or open packaging	ENIG may be easier to manage
Gold fingers or repeated edge contacts	Use hard gold for those areas
Lowest-cost fast SMT assembly	OSP may fit better

Use immersion silver when the board will move from fabrication to assembly within a planned window, and the team can control sealed packaging, gloves, humidity, and contamination.

Use ENIG when the project needs longer storage, wider supply chain flexibility, or more stable cosmetic appearance.

Use OSP when the board is cost-sensitive and will be assembled quickly after fabrication.

Immersion Silver vs ENIG, OSP, and HASL

Immersion silver competes most often with ENIG, OSP, and HASL. Each finish solves a different problem.

Finish	Best use	Main advantage	Main limitation
Immersion Silver	RF, high-speed, fine-pitch SMT, BGA, controlled lead-free assembly	Nickel-free, highly conductive, flat, lower cost than ENIG	Tarnish and handling sensitivity
ENIG	Fine-pitch SMT, BGA, longer storage, broad OEM use	Stable solderability, long shelf life, flat surface	Higher cost and nickel layer
OSP	Low-cost boards assembled quickly	Low cost, flat surface	Shorter process window and handling sensitivity
HASL / Lead-Free HASL	Simple boards with larger pads	Familiar low-cost finish	Less flat, weaker fit for fine-pitch and BGA
Hard Gold	Gold fingers and repeated-contact areas	Wear resistance	Higher cost, not a general solder finish
ENEPIG	Wire bonding, high-reliability mixed interconnects	Strong reliability and bonding support	Higher cost and less common availability

For more detail on ENIG, read ACE Electronics' guide to ENIG PCB surface finish. For low-cost controlled assembly timing, see our guide to OSP PCB surface finish. For repeated contact surfaces, see our guide to hard gold PCB surface finish.

Shelf Life, Tarnish, and Handling Window

Immersion silver can tarnish when exposed to moisture, sulfur, chlorine, fingerprints, and air contaminants. Tarnish may appear as yellowing, dullness, discoloration, or darkening on the silver surface.

A practical storage reference:

Item	Common guidance
Shelf life	Often about 6 months with proper packaging and storage
Packaging	Vacuum sealed or protective sealed packaging
Storage	Dry, clean, low-sulfur, low-contamination environment
Handling	Gloves required
After opening	Move to assembly within the planned window
Main contamination risks	Fingerprints, sulfur, chlorine, humidity, poor resealing

This handling window is the main reason immersion silver is less common than ENIG in general OEM production.

For RF, high-speed, and signal-sensitive boards, immersion silver can be worth the tighter control. For long storage, uncertain assembly timing, repeated package opening, or multiple warehouse transfers, ENIG is usually easier to manage.

Packaging and Assembly Notes

Packaging is part of the immersion silver decision.

For immersion silver PCBs, control:

Sealed packaging after fabrication
Desiccant and humidity indicator when required
Clean storage environment
Low-sulfur packaging materials
Glove handling
FIFO inventory control
Resealing after partial use
SMT assembly timing after opening

For SMT assembly, review:

Solder paste compatibility
Reflow profile
Number of thermal cycles
Time between package opening and solder paste printing
Handling process before assembly
Cleaning process, if used
Visual inspection criteria

Immersion silver works best when PCB fabrication and assembly timing are coordinated.

ACE Electronics can reduce this risk when PCB fabrication and assembly are managed together through turnkey PCBA manufacturing.

Cost and Supply Chain Considerations

Immersion silver is usually a mid-cost PCB surface finish. It is often more expensive than OSP and less expensive than ENIG.

Cost or supply chain factor	Why it matters
Board quantity	Setup and process cost are spread across the order
Fabricator capability	Not every PCB factory supports stable immersion silver
Finish specification	IPC and customer requirements affect process control
Packaging requirement	Better packaging protects the finish but adds cost
Inspection requirement	Cosmetic expectations can add inspection time
Assembly timing	Delays can increase handling and storage risk
RF / high-speed requirement	May require tighter stackup and engineering review

What to Specify in PCB Fabrication Notes

For immersion silver, the fabrication notes should define the finish clearly.

Example fabrication note:

Surface finish: Immersion Silver per IPC-4553. Target silver thickness: 5-18 microinches. Boards to be sealed after fabrication. Handle with gloves and protect from sulfur, chlorine, moisture, and contamination.

For RF or high-speed boards, add the reason if the finish is part of the signal integrity plan:

Surface finish selected for nickel-free RF signal performance. Maintain immersion silver finish on exposed RF pads and connector launch areas.

For controlled assembly timing, include packaging and storage expectations:

Package boards in sealed moisture-protective packaging. Reseal unused boards after opening. Assemble within the controlled process window.

The final wording should match the PCB supplier's standard process and the OEM quality requirement.

What ACE Electronics Usually Recommends

At ACE Electronics, we recommend immersion silver when the board needs nickel-free conductivity, excellent pad flatness, and controlled assembly timing.

We usually review immersion silver for:

RF PCBs
High-speed digital boards
Fine-pitch SMT
BGA, QFN, and LGA assembly
Lead-free soldering
Cost-sensitive designs that need better conductivity than OSP
Projects where ENIG cost is high and storage can be controlled

We usually review ENIG when the project needs longer storage, wider supply chain flexibility, more stable cosmetic appearance, and broad supplier acceptance.

We usually review OSP when the project needs lower cost and fast assembly after fabrication.

For OEM projects, ACE Electronics can review Gerber files, stackup, BOM, assembly process, storage plan, and delivery schedule before confirming the surface finish. If you need fabrication support, see our PCB fabrication service.

Final Decision Checklist

Use this checklist before choosing immersion silver.

Question	If yes
Does the board include RF or high-speed signal paths?	Immersion silver is a strong candidate
Do you want a nickel-free surface finish?	Immersion silver is a strong candidate
Does the design use fine-pitch SMT, BGA, QFN, or LGA?	Immersion silver can fit well
Is ENIG too expensive for the project?	Immersion silver may be a practical alternative
Can boards be assembled within a controlled storage window?	Immersion silver is easier to manage
Can packaging, gloves, and humidity control be enforced?	Immersion silver risk is lower
Will boards sit in storage for a long time?	ENIG may be easier to manage
Will bare boards be opened, resealed, and stored repeatedly?	ENIG may be easier to manage
Is the project mainly lowest-cost fast SMT?	OSP may be better
Are gold fingers or repeated edge contacts required?	Use hard gold for those areas

Immersion silver is a strong finish when electrical performance and flatness matter, and when the production flow can control storage and handling.

Final Recommendation

Choose immersion silver when your PCB needs a flat, lead-free, nickel-free, high-conductivity finish for RF, high-speed, fine-pitch, or BGA assembly.

Use 5-18 microinches as a practical silver thickness reference. Plan for sealed packaging, glove handling, clean storage, and timely SMT assembly.

For long storage, uncertain assembly timing, or projects where cosmetic stability is critical, ENIG is usually easier to manage. For low-cost boards assembled quickly after fabrication, OSP may be the better fit.

If your PCB includes RF traces, high-speed signals, fine-pitch components, or a controlled assembly schedule, ACE Electronics can help review whether immersion silver is suitable through our PCB fabrication service.

+++FAQ+++

What is immersion silver PCB surface finish?

Immersion silver is a PCB surface finish that deposits a thin silver layer directly over exposed copper pads. It protects copper from oxidation and provides a flat, solderable, lead-free metallic surface.

What is the typical thickness of immersion silver?

Typical immersion silver thickness is about 5-18 microinches, or about 0.12-0.45 um. The final requirement should match the PCB fabricator's process and the applicable IPC or OEM specification.

Is immersion silver good for high-frequency PCBs?

Yes. Immersion silver is often a good choice for RF and high-speed PCBs because it is nickel-free and highly conductive. It avoids the nickel barrier layer used in ENIG, which can contribute to surface-finish-related loss at high frequency.

Why is immersion silver used less than ENIG?

Immersion silver needs tighter control of packaging, storage, handling, humidity, and contamination. It can tarnish when exposed to sulfur, chlorine, moisture, fingerprints, or poor storage conditions. ENIG is more common because it has a wider process window and longer storage tolerance.

Is immersion silver better than ENIG?

Immersion silver is better for some RF, high-speed, and cost-sensitive designs because it is nickel-free, conductive, flat, and usually less expensive than ENIG. ENIG is better when the project needs longer shelf life, more stable appearance, and a wider supply chain window.

Does immersion silver have a nickel layer?

No. Immersion silver is deposited directly over copper and does not use a nickel barrier layer. This is one reason it is attractive for RF and high-speed signal applications.

What is the shelf life of immersion silver PCBs?

Many PCB suppliers use about 6 months as a practical shelf life reference when immersion silver boards are properly packaged and stored. Actual shelf life depends on packaging, humidity, contamination, storage environment, and fabricator process.

Does immersion silver tarnish?

Yes. Immersion silver can tarnish when exposed to moisture, sulfur, chlorine, fingerprints, and air contaminants. Proper sealed packaging, glove handling, and clean storage reduce the risk.

Is immersion silver suitable for BGA and fine-pitch components?

Yes. Immersion silver provides excellent surface flatness, so it can work well for BGA, QFN, LGA, fine-pitch ICs, and small SMT components.

Is immersion silver RoHS compliant?

Yes. Immersion silver is a lead-free PCB surface finish and is suitable for lead-free assembly.

Is immersion silver cheaper than ENIG?

In many projects, immersion silver is less expensive than ENIG because it does not require nickel and gold layers. It is usually more expensive than OSP and may be similar to other mid-cost lead-free finishes depending on supplier capability.

What fabrication note should I use for immersion silver?

A practical note is: "Surface finish: Immersion Silver per IPC-4553. Target silver thickness: 5-18 microinches. Boards to be sealed after fabrication. Handle with gloves and protect from sulfur, chlorine, moisture, and contamination." Adjust the final wording to match your supplier and OEM requirements.
