PCB Fabrication Service
From Rapid Prototype to Mass Production.
Our Core PCB Capabilities
Precision manufacturing from prototype to mass production. IATF16949 & UL Certified.
Quality You Can Trust
Verified Performance.
Every PCB is manufactured under strict process control with full inspection and traceability to ensure consistent electrical performance and long‑term reliability.
- IPC Class 2 / Class 3 Manufacturing
- 100% Electrical Testing
- AOI, X‑Ray & Micro‑Section Analysis
- IATF 16949 Certified Quality System
Material Integrity
We only source from authorized distributors (Shengyi, KB, Rogers). Zero tolerance for grey-market scraps or fake materials.
Process Control
100% AOI (Automated Optical Inspection) & E-Test included in every batch to ensure electrical continuity.
Certified By

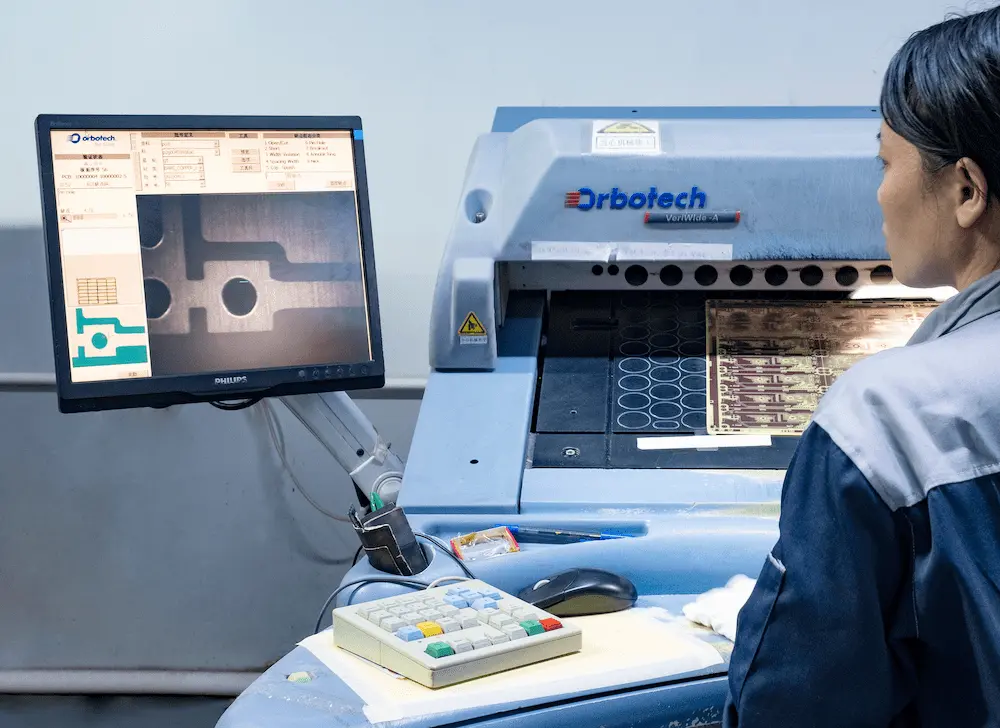

PCB Automated Optical Inspection
At ACE Electronics PCB Factory
How You Order PCB
From Gerber files to your doorstep (or assembly line) in 6 simple steps.
Upload Files
Gerber RS-274X & BOM
Free DFM Check
Within 12 Hours
PCB Fabrication
Quick Turn / Mass Prod
Electrical Test
100% E-Test / AOI
FQC & Packing
Final QC / Vacuum Pack
Ship or Assembly
Global Delivery / ACE Electronics SMT Lines
Frequently Asked Questions
Q
What files do you need for PCB fabrication?
What files do you need for PCB fabrication?
Please provide standard Gerber files (RS-274X) along with your NC drill files, or ODB++ formats. Include a read-me text file with stack-up details, material requirements, surface finish, and board thickness for a precise quote.
Q
What materials do you use for PCB manufacturing?
What materials do you use for PCB manufacturing?

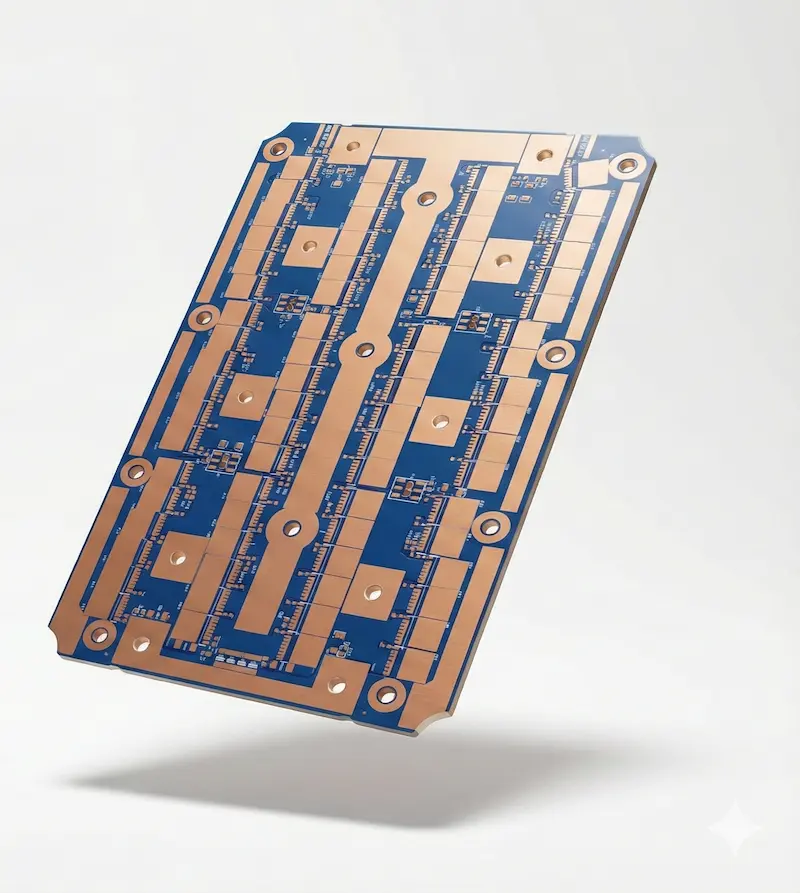

We use a wide range of materials depending on your application. This includes standard FR4, High-TG FR4, Rogers, Isola, Polyimide for flex circuits, and Aluminum/Copper bases for high thermal conductivity needs.
Q
What surface finishes can you provide?
What surface finishes can you provide?
We offer multiple surface finishes including HASL (Lead-Free), ENIG (Electroless Nickel Immersion Gold), OSP, Immersion Silver, Immersion Tin, and Hard Gold plating for edge connectors (Gold Fingers).
Q
What are your fabrication capabilities for HDI boards?
What are your fabrication capabilities for HDI boards?

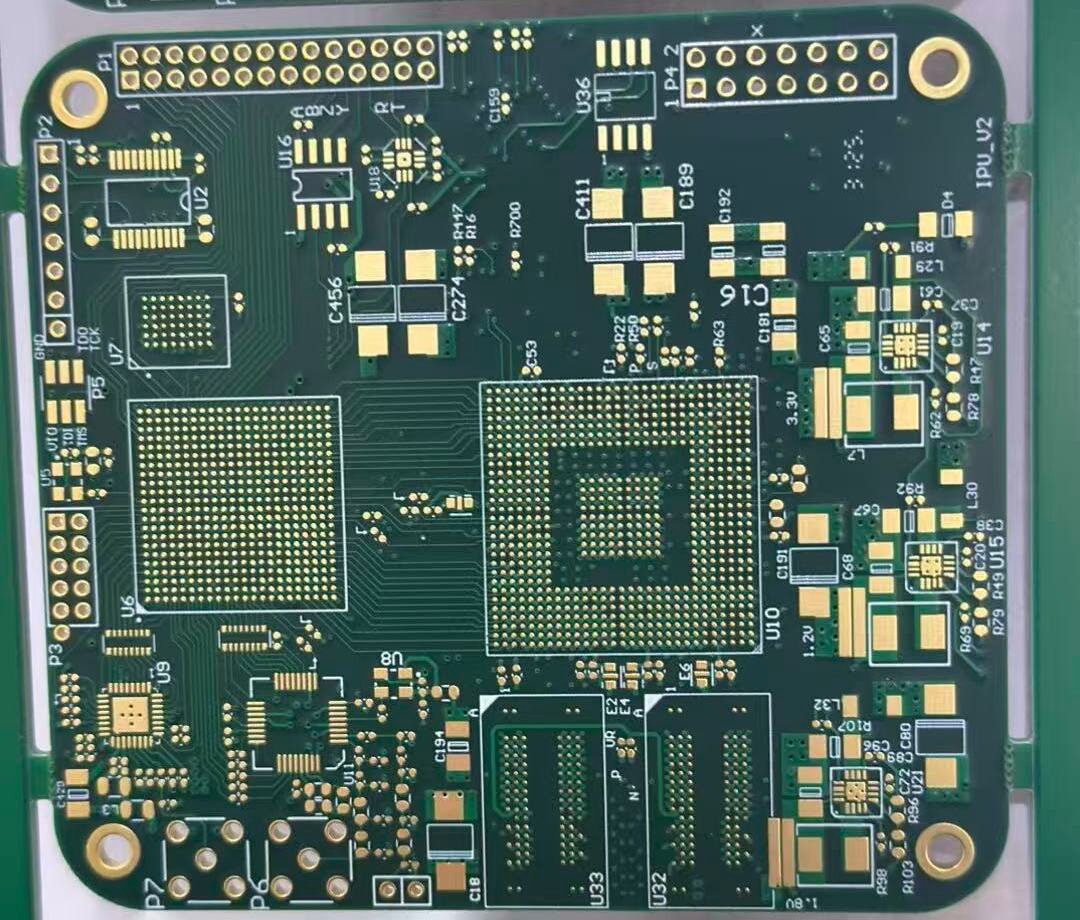

We support advanced HDI routing with any-layer interconnection, blind and buried vias, and plated via filling. Our minimum line width and spacing can reliably reach down to 2 mil (50 µm).
Q
Do you perform electrical testing on bare PCBs?
Do you perform electrical testing on bare PCBs?
Yes. Every manufactured board undergoes 100% electrical testing to ensure there are no open or short circuits before shipping. We use Flying Probe testing for prototypes and E-test fixtures for mass production.
Q
What is the typical lead time for bare PCB boards?
What is the typical lead time for bare PCB boards?
Standard PCB prototypes typically take 3 to 5 days. For advanced boards (HDI, Rigid-Flex, Multilayer) or mass production, the lead time ranges from 2 to 3 weeks depending on complexity and volume.
